Park Tool Free Wheel Remover

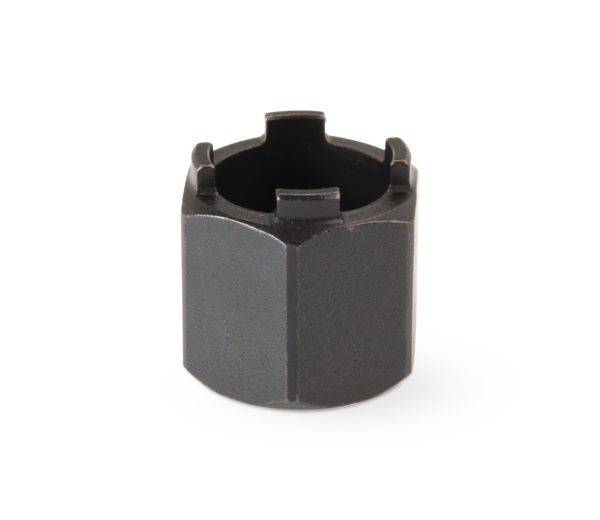

FR-3:

The FR-3 is designed to fit the four-notch tool fittings found on SunTour® freewheels made since 1986. Constructed from heat-treated alloy tool steel, the FR-3 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

• Fits 4-notch tool fittings with an approximate outer diameter of 24 mm
• Fits all Suntour® four-notch freewheels since 1986
• Center bore for axle clearance is 10 mm
• 1" hexagonal base can be used with 1" socket or wrench

NOTE: The Suntour® two notch freewheels do not accept the FR-3 remover. Use the FR-2 for the Suntour® freewheels with two notches

FR-4:

The FR-4 is designed to fit the 20-spline tool fittings found on older SunTour® freewheels. Constructed from heat treated alloy tool steel, the FR-4 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

• Fits 20-spline tool fittings with an approximate outer diameter of 21.6 mm
• Fits Atom®, Regina®, splined Zeus®, and some Schwinn®-approved freewheels
• 1" hexagonal base can be used with 1" socket or wrench

FR-2:

The FR-2 is designed to fit the two-notch tool fittings found on older SunTour® freewheels. Constructed from heat-treated alloy tool steel, the FR-2 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

• Fits 2-notch tool fittings with an approximate outer diameter of 25 mm
• Fits older SunTour® two-notch freewheels
• Center bore for axle clearance is 10 mm
• 1" hexagonal base can be used with 1" socket or wrench

NOTE: SunTour® four notch freewheels do not accept the FR-2 remover. Use the FR-3 for SunTour® freewheels with four notches.

FR-1.3

The FR-1.3 is designed to fit the most common tool fitting found on 5-to-10 speed bicycle freewheel systems, including many models made by Shimano®, Sachs Aris®, SunRace®, Dimension®, and DNP Epoch™. Features an enlarged thru-hole to accommodate 14 mm solid axles. The 1" hexagonal base can be used in conjunction with a 1" socket or adjustable wrench. Heat-treated alloy tool steel construction for a lifetime of use.

• Fits 12-spline tool fittings with an approximate outer diameter of 22.6 mm
• Center bore for axle clearance is 15 mm
• 1" hexagonal base can be used with 1" socket or wrench

NOTE: For Falcon® freewheels, use the FR-7.

FR-11

When removing and installing bicycle components, having the right tools is essential. The Park Tool BBT-5/FR-11 is designed to fit the tool fittings found on Campagnolo® cassette lockrings and cartridge bottom brackets. Constructed from heat-treated alloy tool steel, the BBT-5/FR-11 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

• Fits 12 spline/approx. 22.8 mm OD tool fittings
• Fits all Campagnolo® cassette lockrings
• Also fits Campagnolo® cartridge bottom brackets including Chorus® and Centaur®
• 1" hexagonal base can be used with 1" socket or wrench

NOTE: The BBT-5/FR-11 is not interchangeable with the FR-1.3, FR-5.2, or FR-7. Each tool fitting has its own unique tool profile.

FR-5.2G

The dependable design of our FR-5.2 lockring tool with an added 5 mm guide pin to stabilize the tool when used with quick-release hubs. The FR-5.2G is designed to fit the most common tool fitting found on 7-to-12 speed cassette lockrings, including models made by Shimano®, SRAM®, and others. Also fits disc brake lockrings and lockring adapters with 12 internal splines. Thin wall construction allows use without removal of cones and locknuts. The 1" hexagonal base can be used in conjunction with a socket, wrench, or bench vise. Heat-treated alloy tool steel construction for a lifetime of use.

Fits 12-spline tool fittings with an approximate outer diameter of 23.4 mm including:

• Cassette lockrings from Shimano®, SRAM® (including 1x), SunRace®, SunTour®, Chris King® and others
• Disc brake lockrings and lockring adapters with 12 internal splines from Shimano® and other brands

1" hexagonal base can be used with 1" socket or wrench.

FR-5.2

The FR-5.2 is designed to fit the most common tool fitting found on 7-to-12 speed cassette lockrings, including models made by Shimano®, SRAM®, and others. Also fits disc brake lockrings and lockring adapters with 12 internal splines, and top caps of some Rock Shox® suspension fork models. Thin wall construction allows use without removal of cones and locknuts. The 1" hexagonal base can be used in conjunction with a socket, wrench, or bench vise. Heat-treated alloy tool steel construction for a lifetime of use.

Fits 12-spline tool fittings with an approximate outer diameter of 23.4 mm including:

• Cassette lockrings from Shimano®, SRAM® (including 1x), SunRace®, SunTour®, Chris King® and others
• Disc brake lockrings and lockring adapters with 12 internal splines from Shimano® and other brands
• Top cap of some Rock Shox® suspension fork models including Pike®, Lyrik™, SID®, Revelation™, Reba®, and Paragon™

Center bore for axle clearance is 12 mm.

1" hexagonal base can be used with 1" socket or wrench.

FR-6

The FR-6 is designed to fit the four-notch tool fittings found on some BMX & single-speed freewheels. Constructed from heat treated alloy tool steel, the FR-6 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

• Fits four-notch tool fittings with an approximate inner diameter of 32 mm and approximate outer diameter of 40 mm
• Removes four-notch BMX / single-speed freewheels on hubs with 1.37 x 24 TPI threads
• Center bore for axle clearance is 16 mm
• 1" hexagonal base can be used with 1" socket or wrench

FR-8

The FR-8 is designed to fit the four-notch tool fittings found on flip-flop BMX hubs with M30 x 1 threads, including models made by ACS®. Constructed from heat-treated alloy tool steel, the FR-8 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

• Fits four-notch tool fittings with an approximate inner diameter of 25 mm and approximate outer diameter of 32 mm
• Fits freewheels on flip-flop BMX hubs with M30 x 1 threads
• Center bore for axle clearance is 10 mm
• 1" hexagonal base can be used with 1" socket or wrench
